316L Monocrystalline Silicon Differential Pressure Transmitter Sensor With Flange OEM

Measuring Medium : Liquid

Long-Term Stability : ±0.05%FS/year

Customized : Customized

HS Code : 9026209090

Output Signal Type : Digital Type

Production Process : Normal Wirewound

Wiring Type : Two-Wire

Thread Type : NPT

IP Rating : IP65

Transport Package : Standard Export Packing with Carton

Pressure Type : Gauge Pressure, Absolute Pressure, Sealed Pressure

MOQ : 1 Piece

Price : US $100-120 / Piece

Model NO. : BP350

Housing Material : 316L Stainess Steel

Origin : Baoji, China

Material : Stainless Steel

Specification : Silicon pressure sensor

Certification : CE, RoHS, ISO9001

Trademark : HTsensor

Production Capacity : 5000PCS/Month

Compensation Temp. : -10~70

For : Monocrystalline Silicon Pressure Sensor

Contact Now

BP350 Monocrystalline Silicon Differential Pressure Sensor

Introduction:
BP350 is a differential with overload pressure protection function pressure sensor, differential pressure sensitive core adopts high stability
monocrystalline silicon differential pressure chip imported from Germany It is packaged with anall-welded seal structure and filled with silicone oil under high vacuum,different materials,The measuring diaphragm can not only isolate the measuredmedium and the differential pressure chip, but also make the sensor align Long-term reliable measurement of pressure difference signals of various highly corrosive media. Differential pressure sensor is available An external excitation can convert the measured differential pressure signal into a millivolt signal thatis linearly proportional to it number.

Product Features:
1.Imported high stability monocrystalline silicon differential pressure chip
2.High precision, good stability Adjustable zero and full-scale
3.Static pressure error ±0.15%FS/10MPa
4.Double overload protection diaphragm design
5.One-way overpressure limit up to 40MPa
6.Constant pressure excitation
7.316L stainless steel all-welded integrated structure
8.Symmetrical positive and negative pressure, no O-ring inside
9.Small splint structure

Applications:
1.Differential pressure transmitter core components
2.Differential pressure flow transmitter core components

Performance Parameters
Output	60~140mV
Storage temperature	-40ºC~125ºC
Work Temperature	-40ºC~85ºC
Power Supply	5V DC
Temperature Hysteresis	±0.1%FS(10kPa)
Pressure Hysteresis	±0.025%FS
Long-Term Stability	±0.05%FS/year
Non-linearity	±0.5%FS(10kPa
Static Pressure Influence	±0.15%FS/10MPa
Diaphragm Material	316L or Hastelloy
Zero Temperature Drift	±0.05%FS/ºC

Pressure Range
Range	Over pressure	Static pressure
-6kPa~0~6kPa	16MPa	16MPa
-40kPa~0~40kPa	16MPa	16MPa
-100kPa~0~100kPa	16MPa	25MPa
-250kPa~0~250kPa	16MPa	25Mpa
-1MPa~0~1MPa	16MPa	40Mpa
-3MPa~0~3MPa	16MPa	40Mpa

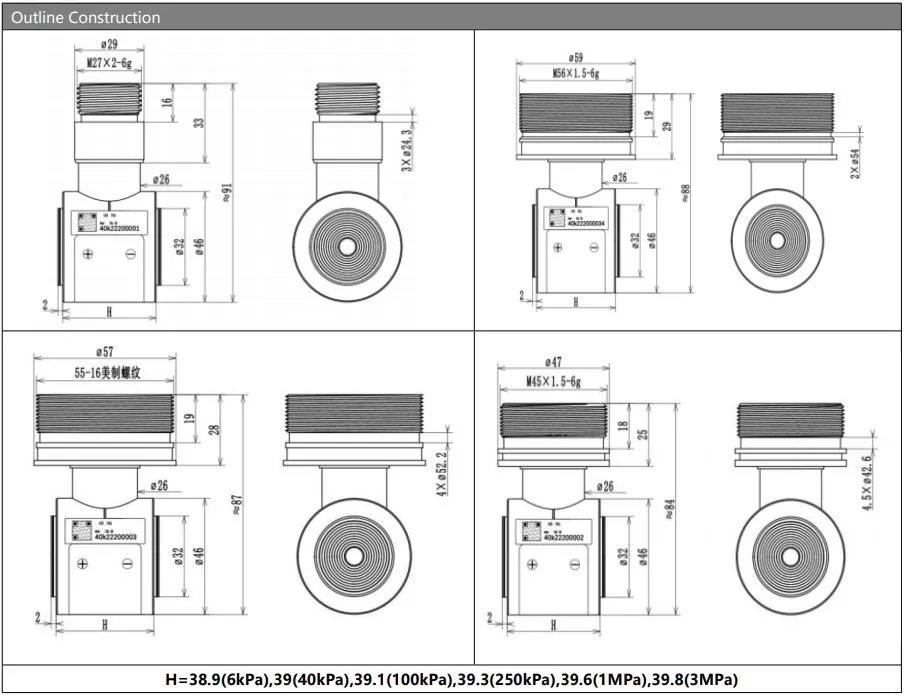

316L Monocrystalline Silicon Differential Pressure Transmitter Sensor With Flange OEM

Ordering tips

1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.

316L Monocrystalline Silicon Differential Pressure Transmitter Sensor With Flange OEM

FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
